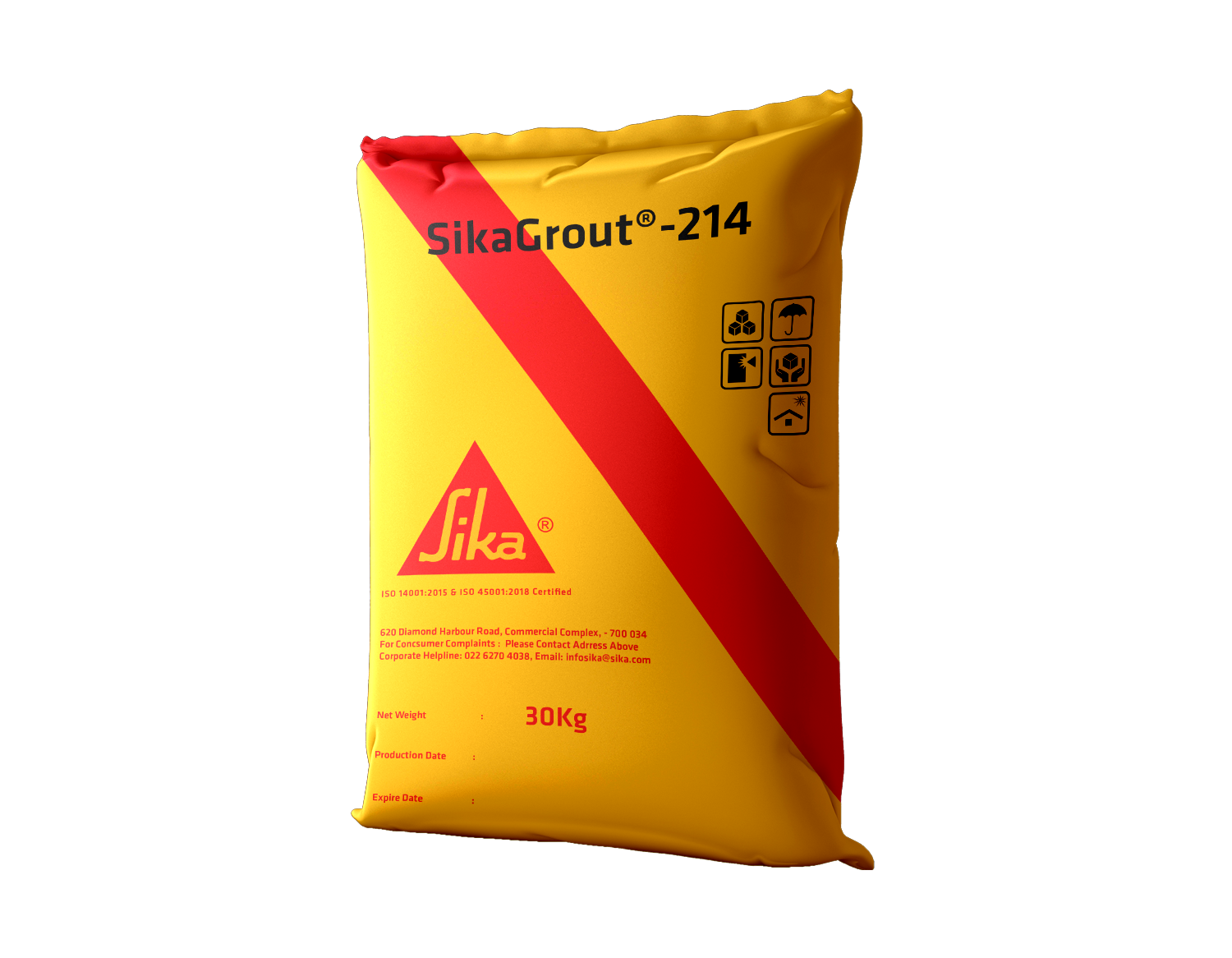

SikaGrout®-214 IN

HIGH PRECISION, NON-SHRINK, EXPANDING POURING GROUT

SikaGrout®-214 IN is a cement based 1-component, ready to mix, non-shrink, ready to use, pourable and flowable, two stage expanding engineering grout in dry powder form. It is widely used for precision grouting in engineering objects subjected to static and dynamic loads.

  • Dual Shrinkage compensated
  • Suitable for temperature of above 0°C to 200°C
  • Adjustable consistency

Usage

  • To grout bearings, machine foundations, columns joints in precast construction etc.
  • To grout anchors in concrete
  • To grout cavities, gaps and voids in concrete
  • To grout base plate of turbine, compressor, boilers, pumps and heavy machinery
  • Sealing around penetrations
  • Post fixings

Packaging

30kg bag

Colour

Grey Powder



Advantages

  • Dual Shrinkage compensated
  • Suitable for temperature of above 0°C to 200°C
  • Adjustable consistency
  • Rapid strength development
  • Excellent bond to Concrete
  • No Segregation or bleeding
  • High final strengths
  • Impact and vibration resistant
  • Non-corrosive to anchor bolts, base plate/saddle/frame, sliding plate
  • Frost, oil and fire resistant
  • Suitable to use under restraints and grout thickness required
  • Maximum Flow distance is compatible to the dimensions of base plate/saddle/frame
  • Resistant to the chemicals, gases etc. being handled in equipment
  • Chloride free

Product Information

Composition

Cement, special additives, and aggregates

Shelf life

6 months from date of production.

Storage conditions

Store properly in dry conditions in undamaged and unopened original sealed packaging.

Bulk density

1.15–1.60 kg/L (dry powder density) at +27 °C

 (ASTM C948)

Maximum grain size

2.36 mm

Product declaration

ASTM C1107

Technical Information

Compressive strength

With 70.6 mm Cube, at ambient Temperature +30°C

1 day

≥ 25 N/mm2

3 days

≥ 35 N/mm2

7 days

≥ 45 N/mm2
28 days ≥ 65 N/mm2

With 50 mm Cube, at ambient Temperature +30°C

1 day ≥ 25 N/mm2
3 days ≥ 36 N/mm2
7 days ≥ 50 N/mm2
28 days ≥ 70 N/mm2

Modulus of elasticity in compression

~ 37000 N/mm2

(ASTM C469)

Tensile strength in flexure

7 days

≥ 7 N/mm2

28 days

≥ 9 N/mm2

Ambient Temperature +30°C

Splitting tensile strength

28 days

 ≥ 3.5 N/mm2

Tensile adhesion strength

≥ 12 N/mm2 (7 days, +30 °C) (ASTM C882)
≥ 2.0 N/mm2 (28 days, +30 °C) (EN 1542)

This term is also referred to as Bond Strength

Expansion

Upto 4%

(ASTM C 1090)

SikaGrout®-214 IN

Technical Data Sheet (TDS)
