Sikadur®-31 SBA S-02 IN

Segmental bridge adhesive for use at +25 °C to +45 °C

Sikadur®-31 SBA S-02 IN is a 2-part epoxy based moisture tolerant, thixotropic, solvent-free, structural adhesive especially formulated for segmental bridge construction. It has good squeezability, high initial strength gain, hardens without shrinkage and complies with many international and national standards such as FIP, ASTM etc. Application temperature range +25 °C to +45 °C.

  • Meets and / or exceeds International and National Standards (such as FIP, BS, ASTM etc.)
  • Lubricates the surfaces and makes positioning of the shear keys easier
  • High strength and high modulus of elasticity

Usage

Sikadur®-31 SBA S-02 IN is used as segmental bridge adhesive for use on substrate temperatures of +25 °C to +45 °C.     Sikadur®-31 SBA S-02 IN in segmental bridge construction:

  • Provides a watertight joint between segments
  • Lubricates the surfaces
  • Transfers the loading stresses between segments

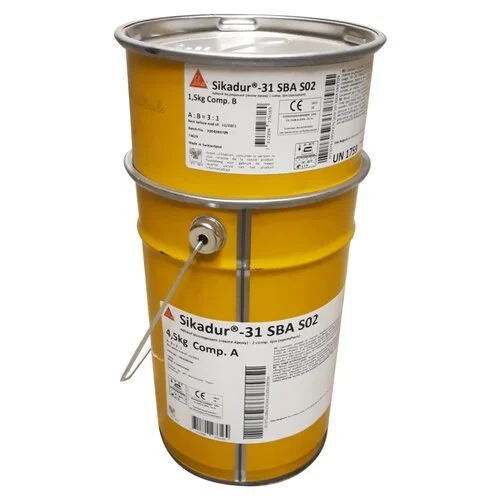

Packaging

Part A+B prebatched unit

6 kg × 2 sets
Part A 4.50 kg container
Part B 1.50 kg container

Colour

Part A+B mixed Concrete grey
Part A Off white
Part B Black

Advantages

  • Meets and / or exceeds International and National Standards (such as FIP, BS, ASTM etc.)
  • Lubricates the surfaces and makes positioning of the shear keys easier
  • High strength and high modulus of elasticity
  • High initial and ultimate strengths
  • Impermeable to liquids and water vapour
  • Minimal water absorption
  • Suitable for dry and damp concrete surfaces (moisture tolerant)
  • Hardening is not affected by humidity
  • Thixotropic: non-sag in vertical and overhead applications
  • Solvent free
  • Hardens without shrinkage
  • Different coloured components (for mixing control)
  • No primer needed

Product Information

Product declaration

According to FIP / fib 9/2 Proposal for a standard for acceptance tests and verification of epoxy bonding agents for segmental construction

Composition

Epoxy resin and selected fillers

Shelf life

12 months from date of production

Storage conditions

The product must be stored properly in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +40 °C. Protect from direct sunshine.

Density

Part A+B mixed : (1.9 ± 0.1) kg/L (at +30 °C)

(EN ISO 2811-1)

Application Information

Compressive strength

Curing time

Curing temperature

Compressive strength

24 hours

+25 °C

≥ 60 N/mm2

7 days

+25 °C

≥ 75 N/mm2

Modulus of elasticity in compression

~14 000 N/mm2 (Instantaneous modulus)

(FIP 5.13)

Shear strength

≥ 12 N/mm2 (7 days / +25 °C)

(FIP 5.15)

Tensile adhesion strength

Bond strength on wet concrete 100 % concrete failure (24 hours / +25 °C)
Tensile bending on wet concrete 100 % concrete failure (24 hours / +25 °C)

Creep

Deferred modulus in compression (1 hour) ~7500 N/mm2

Shrinkage

Hardens without shrinkage

≤ 0.4 % (7 days / +45 °C)

(FIP 5.7)

Temperature resistance

Meets the requirements of FIP 5.10, DIN 53458 and ASTM D648

≥ +50 °C (7 days / +45 °C)

(FIP 5.10)

Heat deflection temperature

≥ +50 °C (7 days / +45 °C)

(ASTM D648)

(DIN 53458)

Water absorption

Water absorption ≤ 0.5 %
Solvability in water ≤ 0.1 %

Sikadur®-31 SBA S-02 IN

Technical Data Sheet (TDS)
